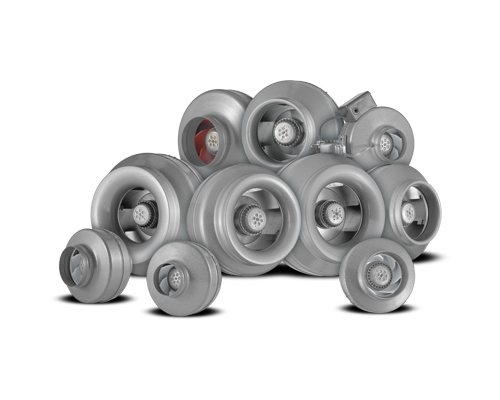

VTX Series
- Brackets included for wall or ceiling mount
- Permanently lubricated sealed bearings
- External rotor motor with automatic reset thermal overload protection
- Suitable for airstream temperatures up to 140°F (60°C)
- 10 year warranty
- ETL Listed
- 4” to 12” duct diametersFrom 220 to 1124 CFM
- Aerodynamic design allowing more air flow
- 100% speed controllable easing air flow adjustment
- Prewired with 120V power cord
| Fan Model | Weight | A | B | C |
| VTX 400 | 7.4 | 4.0 | 8.5 | 9.5 |
| VTX 400P | 8.8 | 4.0 | 8.5 | 9.5 |
| VTX 500 | 7.0 | 5.0 | 8.5 | 9.5 |
| VTX 600L | 6.8 | 6.0 | 8.5 | 9.5 |
| VTX 600 | 10.8 | 6.0 | 10.5 | 13.0 |
| VTX 800L | 12.0 | 8.0 | 10.5 | 13.0 |
| VTX 800 | 12.2 | 8.0 | 10.5 | 13.0 |
| VTX 1000 | 12.4 | 10.0 | 10.5 | 13.0 |
| VTX 1200L | 14.4 | 12.0 | 12.3 | 16.0 |
| VTX 1200 | 14.6 | 12.0 | 12.3 | 16.0 |
